Complete 200W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy Solution

$979.99

Power your freedom on the move. This complete 200 watt off grid solar system provides reliable, plug-and-play energy generation wherever your travels take you. Engineered specifically to meet the strict demands of mobile living, this all-in-one package bypasses the compatibility nightmares of building an array piece-by-piece by arriving with a perfectly matched battery and inverter right out of the box. It is the definitive mobile power solution for custom van builds, RV retrofits, and reliable off-grid emergency backup storage. Key Performance Features: Complete All-In-One Bundle: Includes high-efficiency solar panels, a dedicated charge controller, a deep-cycle battery bank, and a clean-power…

SKU: SKU: RS-CK200
Category: ,
Tags: , , , , , , , , , , , ,
Brands:

Description

Our Complete 200W Solar Kit with Battery & Inverter provides everything you need to harness, store, and utilize solar energy. This kit features a high-efficiency 200W monocrystalline panel, a 30A MPPT controller, a 2000W 12V inverter, and an Alpha 1 Lithium battery. Perfect for your RV or tiny home, this kit is your gateway to a solar-powered lifestyle. Start your solar adventure today!

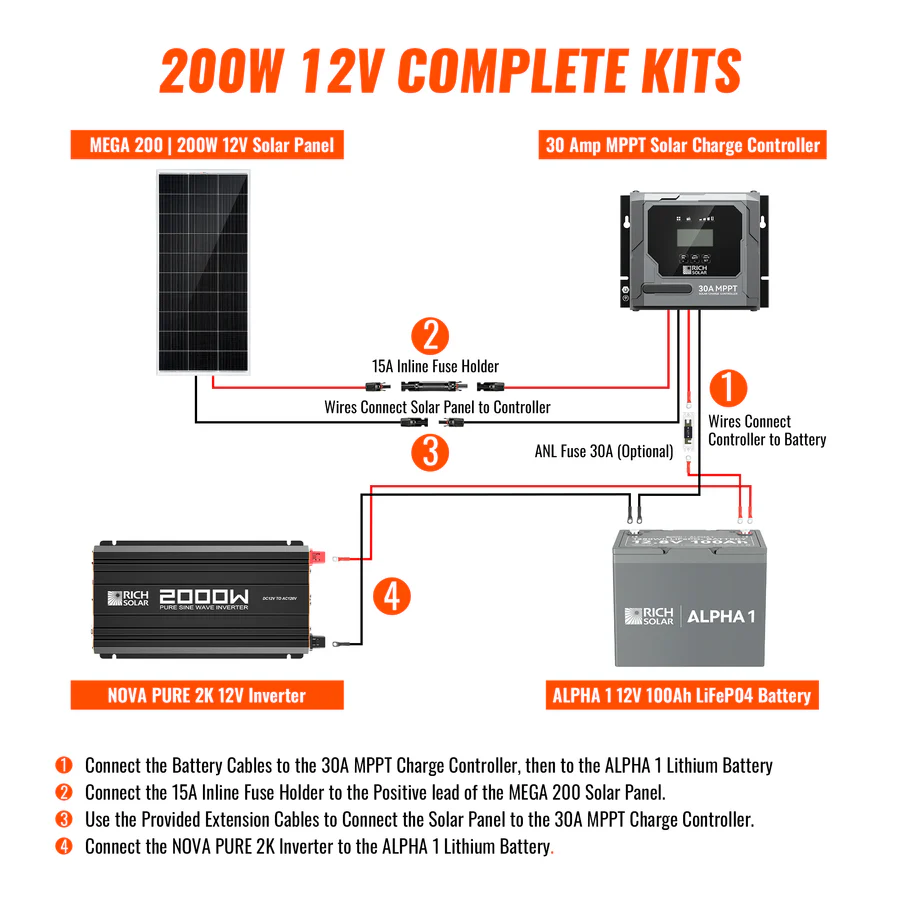

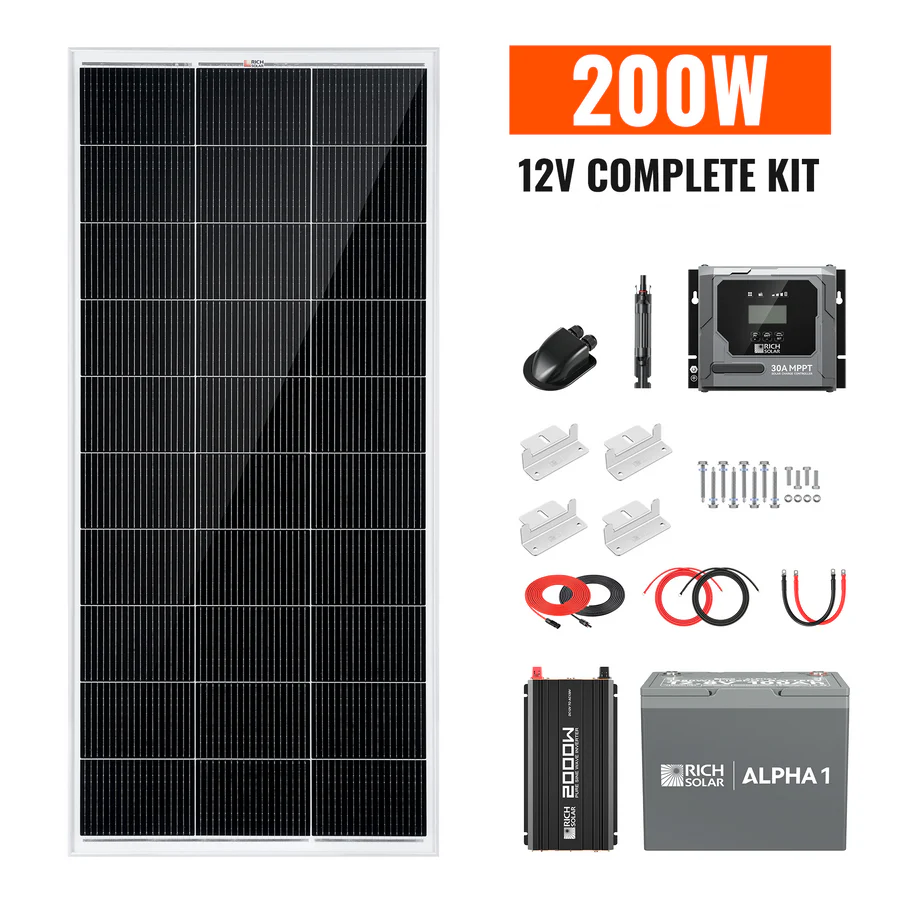

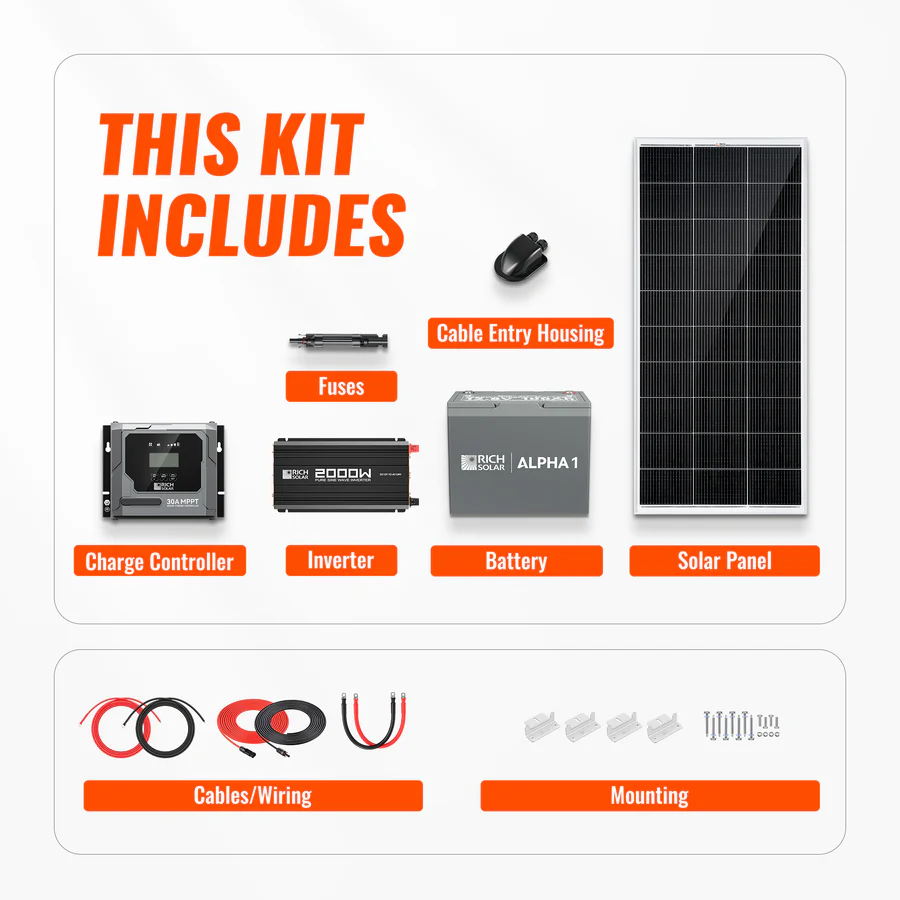

Kit Includes:

  • 1 x MEGA 200W 12V Panel (RS-M200)
  • 1 x Bravo 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x ALPHA 1 Lithium Battery (RS-B121S)
  • 1 x NOVA 2000W 12V Inverter (RS-V2P12)
  • 1 x Z Bracket Set (RS-ZB4C)
  • 1 x Cable Entry Housing (RS-C2B)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
  • 1 x 30′ 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10′ 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
  • 1 x 2/0 Gauge 3/8″ Battery Cables 4FT Cable Set (Inverter to Battery) (RS-2/0A4F3)
  • MEGA 200 | 200 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats | 25-Year Output Warranty | UL Certified - RICH SOLAR

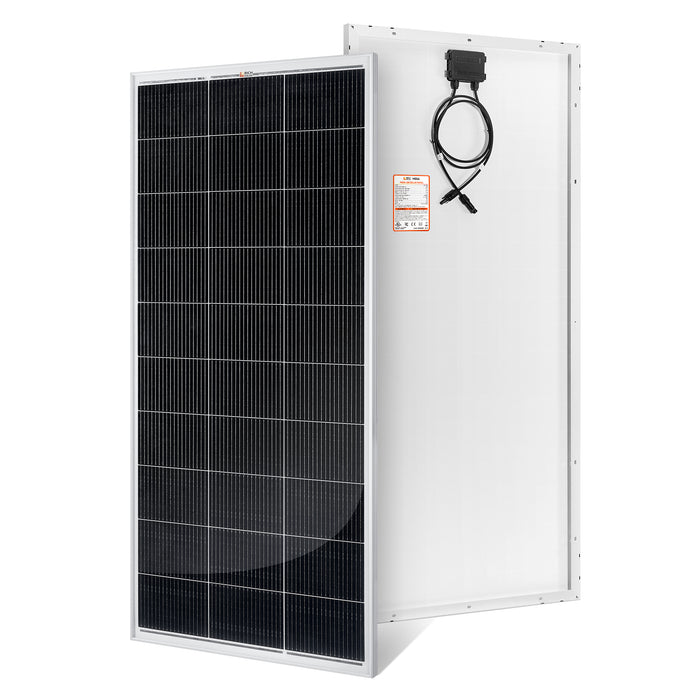

    MEGA 200

    12V 200W Watt Solar Panel

    The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

    Features:

    • Generates 10.9 amps of power, charges 12-volt batteries, 3′ quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp): 18.4V
    • Maximum Power Current(Imp): 10.9A
    • Open Circuit Voltage(Voc): 21.8V
    • Short Circuit Current(Isc): 11.6A
    • Temperature Range: -40 ~ +185°F
    • Maximum Series Fuse Rating: 15A
    • Weight: 24 lb
    • Dimensions: 58.7 x 26.8 x 1.2 in
  • BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 - RICH SOLAR

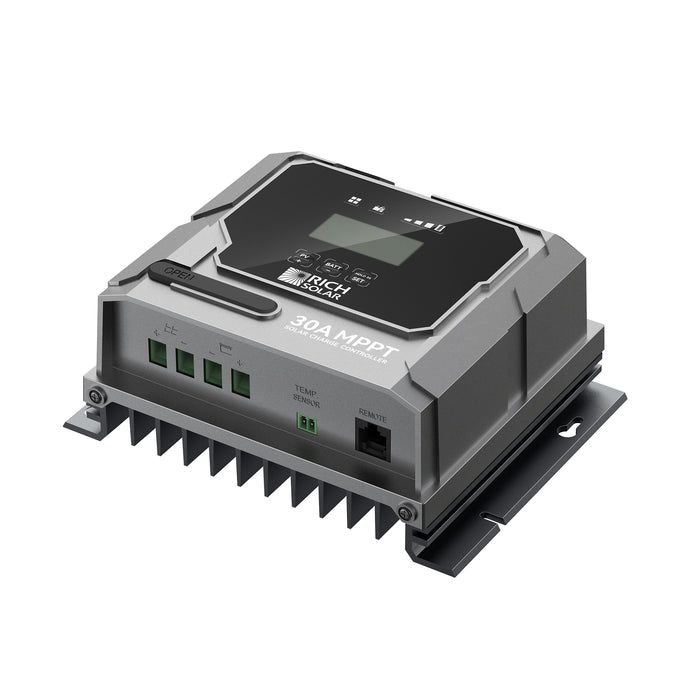

    Bravo 30A

    30 Amp MPPT Solar Charge Controller

    Features:

    1. Advanced MPPT Technology

    • Advanced MPPT algorithm with up to 99.5% tracking efficiency
    • 98% conversion efficiency for maximum solar energy utilization
    • Stable operation under low-light or partial shading conditions

    2. Flexible Battery Compatibility

    • Auto-detects 12V/24V systems for seamless integration
    • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
    • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

    3. Advanced Protection System

    • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
    • Weather-resistant build with IP43-rated PCBA and IP22 connectors
    • Certified to ETL, FCC, CE, ROHS

    4. Intelligent Monitoring System

    • LCD + LED display: Real-time solar input, battery status, and customizable parameters
    • Built-in Bluetooth for App monitoring (Rich Solar App)
    • Optional remote meter and temperature sensor for enhanced control

    Specifications:

    • Maximum Solar Input Current: 30A
    • Maximum Charging Current: 30A
    • Recommended Solar Power:  500W (12V) / 1000W (24V)
    • Nominal System Voltage: 12V/24V Auto-Detect
    • Solar Input Voltage Range: 8V-100V
    • MPPT Voltage Range: 15V-72V
    • Maximum Conversion Efficiency: 98%
    • Maximum MPPT Tracking Efficiency: 99.5%
    • Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
    • Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
    • Protection Rating: IP43 PCBA, IP22 Connection
    • Net Weight: 1.8 lb
    • Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
  • ALPHA 1 | 12V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology - RICH SOLAR

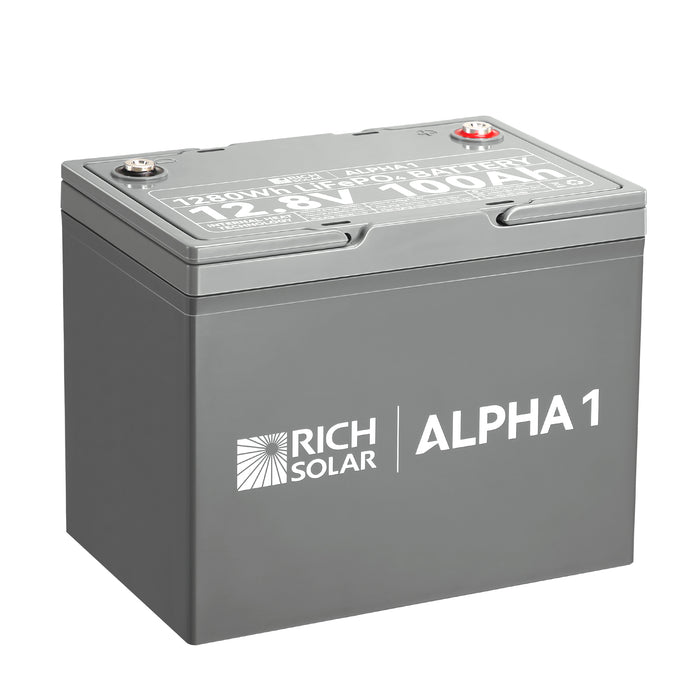

    ALPHA 1

    12V 100Ah LiFePO4 Battery

    Features:

    • Stay powered in low temps with advanced internal heating tech
    • Track battery health in real time from your phone
    • Over 5,000 cycles with UL94 V-0 flame-retardant protection
    • IP65 waterproof, dustproof, and tested for extreme safety
    • Free of toxic metals—safe for you and the planet
    • Lightweight design, heavy-duty performance
    • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

    Warranty:

    • *5-Year Warranty

    Specifications:

    Battery

    • Cell Type: LiFePO4 Battery
    • Nominal Voltage: 12.8V
    • Nominal Capacity: 100Ah
    • Nominal Energy: 1280Wh
    • Cycle Life: 5000 cycles

    BMS

    • BMS: 100A
    • Maximum Charging Current: 100A
    • Maximum Continuous Discharge Current: 100A
    • Maximum Discharge Current 10 Seconds: 110A

    Charge

    • Charge Method: CC/CV
    • Charge Voltage: 14.4V ± 0.2V
    • Recommend Charge Current: 50A (0.5C)

    Temperature

    • Charge Temperature: 32°F to 131°F (0°C to 55°C)
    • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
    • Storage Temperature: 14°F to 113°F (-10°C to 45°C)

    Self-heating

    • External Power Draw: 100W
    • Internal Heating Starts: < 41°F (5°C)
    • Internal Heating Stops: > 50°F (10°C)

    Others

    • Net Battery Weight: 24.0lb
    • Size(LxWxH): 10.2×6.6×8.3in (Group 24 size)
    • Housing Material: ABS (Flame Retardant Plastic)
    • Protection Class: IP65
    • Warranty: 5 Years

  • NOVA PURE 2K

    12V 2000W Pure Sine Wave Inverter

    Features:

    • Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
    •  Offers high-quality waveform with little harmonic distortion.
    •  Overload protection for both DC input and AC output to prevent damage to the components and the unit.
    •  Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
    •  High-speed ventilation fans to help keep the inverter running at a low temperature.
    •  120V AC outlets allow for the operation of more than one appliance simultaneously.
    • Quiet, no static or humming noises.

    Warranty:

    • 2-Year Warranty

    Specifications:

    • Model: RS-V2P12
    • Rated Voltage: 12V DC
    • Continuous Power: 2000W
    • Peak Surge: 4000W
    • Waveform: Pure Sine Wave
    • Input Voltage: 12V DC
    • Output Voltage: 120V AC
    • Output Frequency: 60 Hz
    • Output Efficiency: ＞88%
    • AC Output Sockets: 3
    • USB Power Port: 5V / 2.1A
    • Power Output Control: AC On/Off Switch
    • Operating Temperature: 14°F to 122°F
    • Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
    • Weight: 10.1 (lb) / 4.6 (kg)
